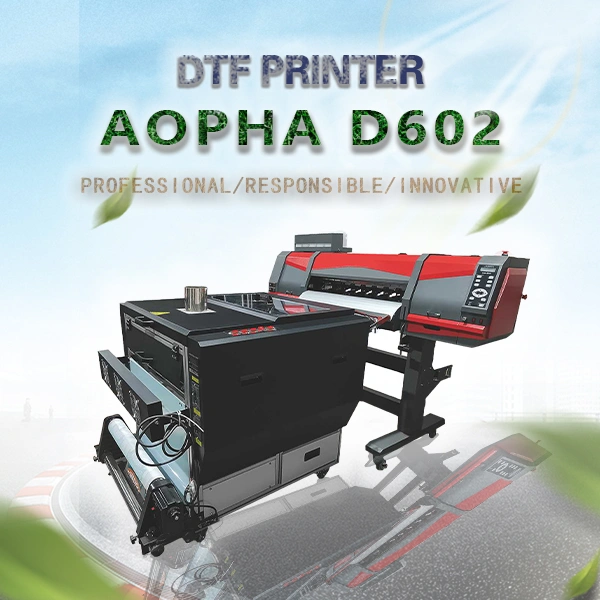

Aopha DTF Printer D602
Easy to operate High efficient production Smart printing High performance system
Automatic take up system High precision 24 hours continuous printing High quality servo motor
Specifications and parameters of Printer:
Printer model | Aopha DTF printer D602 |
Print width | 600 mm |
Printhead model | XP600/I1600/I3200 * 2 pcs |
Print speed | 6 Pass, 5 sqm/hr. 8 Pass, 3 sqm/hr (XP600) 6 Pass, 6 sqm/hr. 8 Pass, 4 sqm/hr (I1600) 4 Pass, 12 sqm/hr. 6 Pass, 8 sqm/hr (I3200) |
Ink type | DTF ink |
Ink color | CMYKW |
Media type | PET film |
Operating system | XP/Win7/Win8/win10/Win11 |
Take up function | Automatic take up system |
Control system | Hosen printing system |
Rip software | Riin, Maintop, Photoprint |
Interface | Gigabit network port |
Suction platform | Equipped |
Enviroment | 20-30°C |
Humidity | 45-65% |
Voltage | 220V/110V, 60Hz/50Hz |
Machine frame | Integrated frame, more stable |
Cleaning method | Auto cleaning system |
Printer size | 1640mm*500mm*1240mm, 118kg |
Printer packing size | 1710mm*770mm*660mm, 160kg, wood case |
Powdering packing size | 950mm*920mm*1050mm, 115KG, wood case |
All of our printers system used Hoson control system. In this configurations, which mean is working stable, high quality with reasonable cost. Printing machine with double printhead, which is fast enough for basic printing business.
DTF printing machine suits for print on customized products, such as cotton, polyester etc. Simple process and low maintenance cost. Equipped with a white ink circulation and stirring system, which can effectively reduce the generation of sediment and reduce the risk of clogging.
The platform front heating makes the inkjet printing smoother and less blocked. It also prolongs the service life of the printhead.
Specifications and parameters of Powdering machine:
Width | 0-650 mm |
Range of front-heat | 300 mm |
Range of dryer | 780 mm |
Voltage | 110-220V / 50-60 Hz |
Peak current | 110V:25A / 220V:13A |
Rated Power | 2700W |
Rolling method | Diffuse induction automatic take up system |
Heating method | Halogen infrared heating tube, 680mm * 4 pcs |
Applicable media | Cloth/leather/chemical fiber/nylon/PVC/EVA etc. |
Machine dimensions | 800* 860* 850 mm |
Packing dimensions | 950* 920* 1050 mm |
Gross/Net | 115KG/85KG |
Powder is sprinkled on demand, and the motor cooperates, which is similar to the powder return function.
Triple correction positioning to prevent the film from deviating.
Energy saving and environmental protection, the power of the whole machine is only 2700W.
The heating position of machine is insulated both above and below. With less heat dissipation and more energy saving.
The machine has its own oil-water separator and oil fume purifier.
It uses a brand brushless motor with low noise, low power consumption and long service life.
