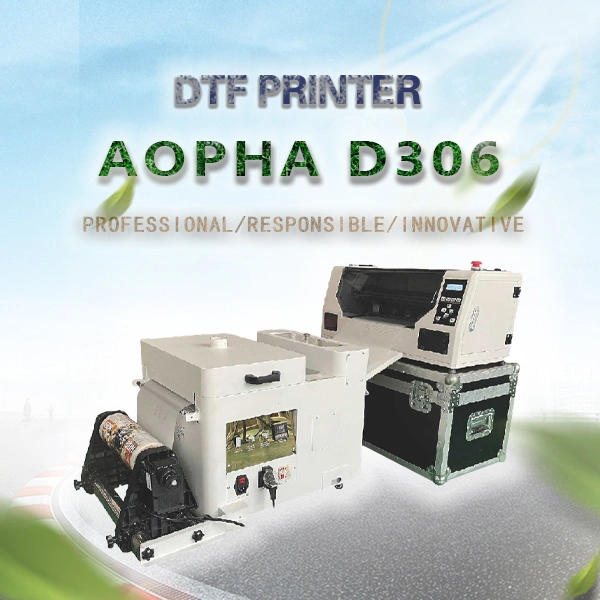

Aopha DTF Printer D306
Easy to operate High efficient production Smart printing High performance system

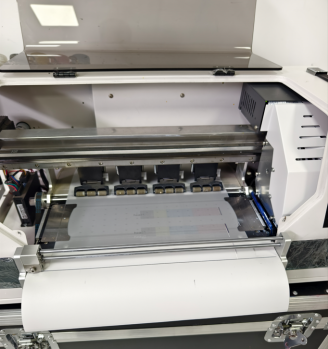

All of our printers system used Hoson control system. In this configurations, which mean is working stable, high quality with reasonable cost. Printing machine with double printhead, which is fast enough for basic printing business.It occupies a small area and consumes less, suitable for small shops, or small batch sample printing.
DTF printing machine suits for print on customized products, such as cotton, polyester etc. Simple process and low maintenance cost. Equipped with a white ink circulation and stirring system, which can effectively reduce the generation of sediment and reduce the risk of clogging.
The platform front heating makes the inkjet printing smoother and less blocked. It also prolongs the service life of the printhead.
Specifications and parameters of Printer:
Printer model | Aopha DTF printer D306 |
Print width | 300 mm, 12’’ |
Printhead model | I3200/XP600/I1600* 2 pcs |
Resolution | 6 Pass, 5 sqm/hr. 8 Pass, 3 sqm/hr (XP600) 6 Pass, 6 sqm/hr. 8 Pass, 4 sqm/hr (I1600) 4 Pass, 12 sqm/hr. 6 Pass, 8 sqm/hr (I3200) |
Ink type | DTF ink |
Ink color | CMYKW |
Media type | PET film |
Operating system | XP/Win7/Win8/win10/Win11 |
Take up function | Automatic take up system (Option) |
Control system | Hosen printing system |
Rip software | Riin, Maintop, Photoprint (Option) |
Interface | Gigabit network port |
Suction platform | Equipped |
Enviroment | 20-30°C |
Humidity | 45-65% |
Voltage | 220V/110V, 60Hz/50Hz |
Cleaning method | Auto cleaning system |
Printer size | 750mm*340mm*350mm, 34kg |
Printer packing size | 800mm*400mm*420mm, 50kg, wood case |
Powdering packing size | 780mm*610mm*700mm, 47kg, wood case |

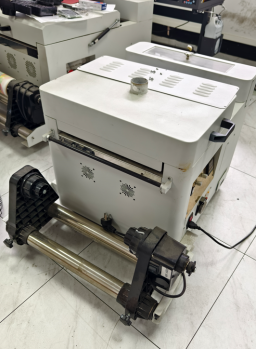

Specifications and parameters of Powdering machine:
Width | 0-300 mm |
Range of front-heat | 200 mm |
Range of dryer | 600 mm |
Voltage | 110-220V / 50-60 Hz |
Peak current | 110V:25A / 220V:13A |
Rated Power | 1500W |
Rolling method | Diffuse induction automatic take up system |

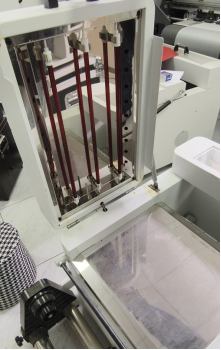

Heating method | Halogen infrared heating tubes |
Applicable media | Cloth/leather/chemical fiber/nylon/PVC/EVA etc. |
Machine dimensions | 650mm*540mm*570 mm |
Packing dimensions | 780mm*610mm*700mm |
Gross/Net | 47KG/32KG |
