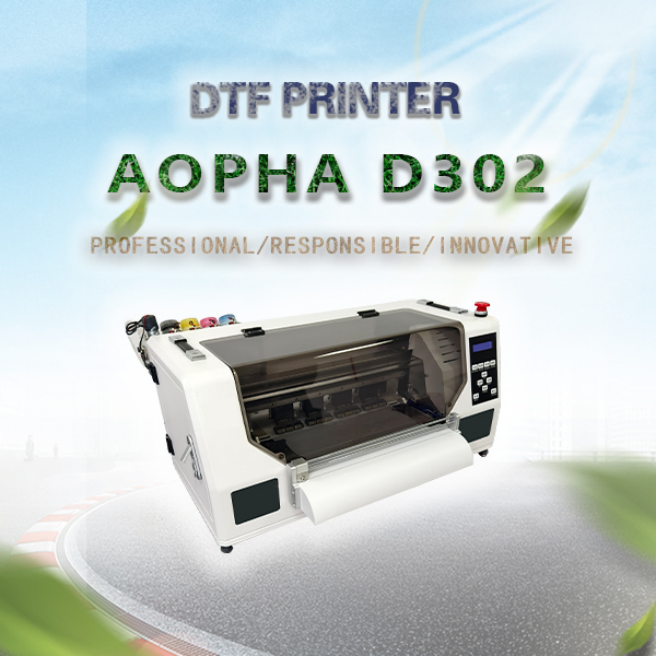

Aopha Desktop DTF Printer D302
Easy to operate High efficient production Smart printing High performance system
All of our printers system used Hoson control system.
In this configurations, which mean is working stable, high quality with reasonable cost.
Printing machine with double printhead, which is fast enough for basic printing business.
It occupies a small area and consumes less, suitable for small shops, or small batch sample printing.
DTF printing machine suits for print on customized products, such as cotton, polyester etc.
Simple process and low maintenance cost.
Equipped with a white ink circulation and stirring system, which can effectively reduce the generation of sediment and reduce the risk of clogging.
The platform front heating makes the inkjet printing smoother and less blocked.
It also prolongs the service life of the printhead.
Specifications and parameters of Printer:
Printer model | Aopha DTF printer D302 |
Print width | 300 mm, 12’’ |
Printhead model | XP600* 2 pcs |
Resolution | 4 Pass, 6 sqm/hr. 6 Pass, 3 sqm/hr (XP600) |
Ink type | DTF ink |
Ink color | CMYKW |
Media type | PET film |
Operating system | XP/Win7/Win8/win10/Win11 |
Control board | Physical buttons |
Control system | Hosen printing system |
Powdering method | Manual powder spreading |
Rip software | Riin, Maintop (Option) |
Interface | Gigabit network port |
Suction platform | Equipped |
Enviroment | 20-30°C |
Humidity | 45-65% |
Voltage | 220V/110V, 60Hz/50Hz |
Cleaning method | Auto cleaning system |
Printer size | 740mm*350mm*320mm, 26kg |
Printer packing size | 800mm*400mm*425mm, 36kg, wood case/cabinets (Option) |
Specifications and parameters of oven:
Size | 300 * 450 mm |
Media type | Cloth, nylon, chemical fiber, fabric, leather, swimwear, PCV, EVA, etc. |
Function items | Power switch, curing temperature PID setting, Working time setting etc |
Heating and drying function | Far-infrared carbon fiber heating tube heating |
Electrical parameters | Rated voltage 220V Rated current 5A Rated power 800W |
Effective area of curing area | 380*550mm |
Machine size | 520*580*220mm |
Packaging size | 600*550*230mm |
Gross weight | 12 KG |
Net weight | 11 KG |
Packing dimensions | 780mm*610mm*700mm |
Gross/Net | 47KG/32KG |
